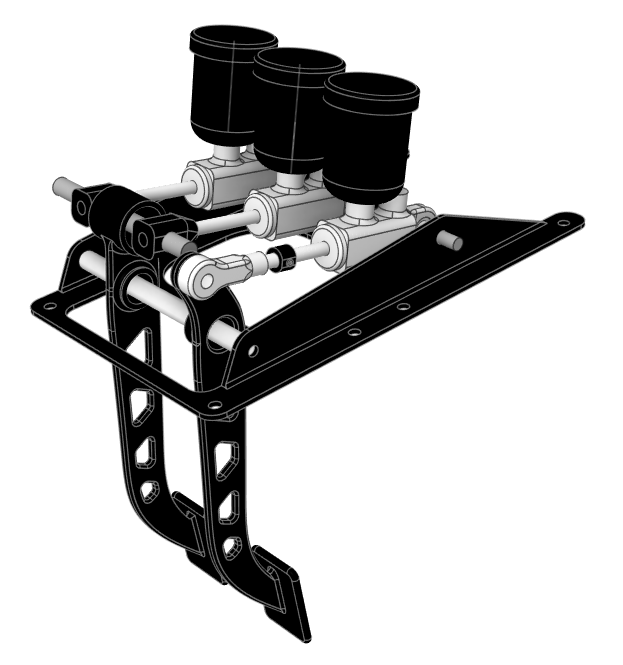

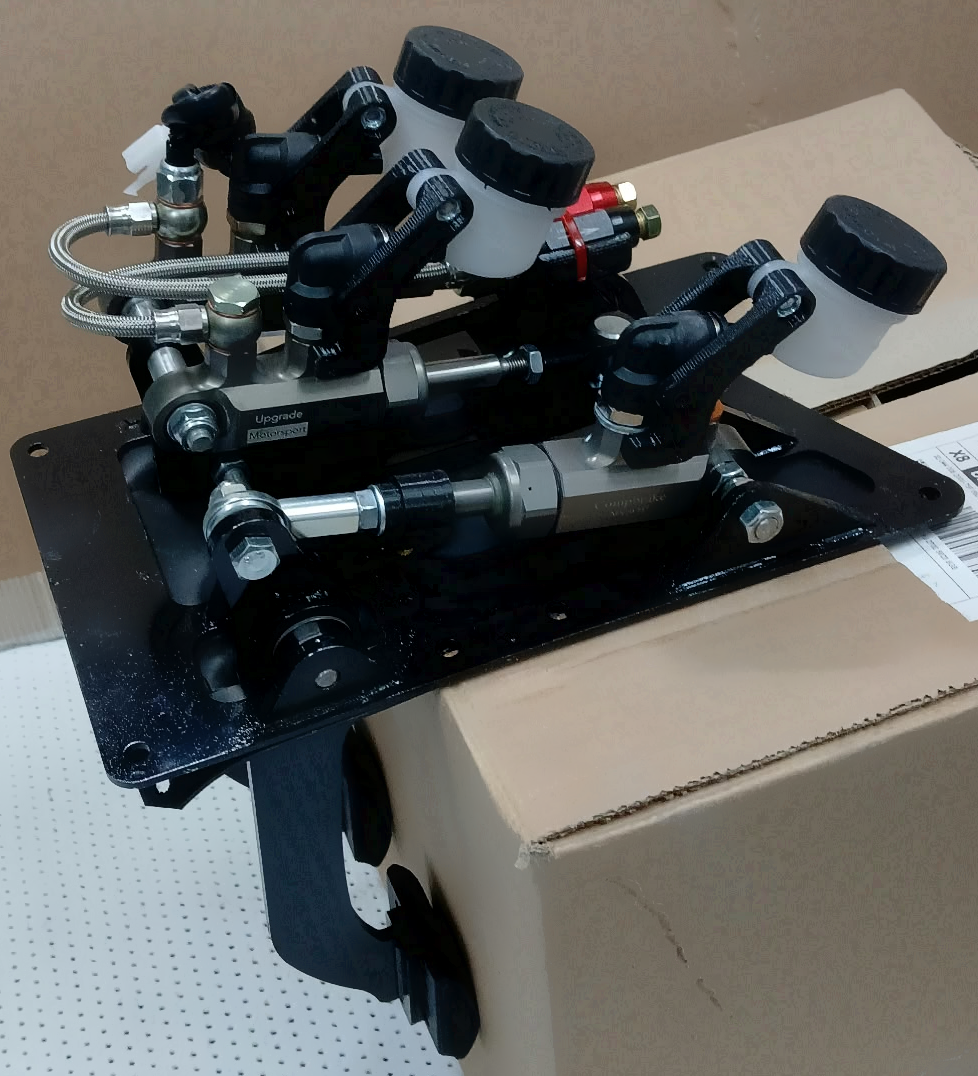

Our new race-spec triple cylinder pedal box is the ultimate performance braking upgrade for your 1275 Midget or Sprite.
Designed specifically for racing it uses CNC machined alloy master cylinders with spherical bearings and linear guides so the force is always applied in line with the cylinder giving improved feel and reduced weight.
The advanced trunnion adjuster reduces take-up travel and makes this the most efficient pedal box available for MG Midgets. This is technology usually only seen on the most high-end offerings from AP Racing.
Our custom frame is laser cut steel and mounts directly to the original mountings with no additional drilling required.
Low-height reservoirs with integral bellows seals are direct mounted to the m/cs or can be remote mounted to the bulkhead.
We include Residual Pressure Valves to combat pad-knock-off on bumpy tracks or kerbs as they keep the pedal feel and take-up position consistent allowing for harder, later braking with confidence.
The pedals are available in 2 versions - Laser cut and welded Steel OR Tow-optimised Forged Carbon Fibre (See listing)
This kit has everything you need for a race pedal box:
- Laser cut steel frame
- 3 Master cylinder (.625", .7", .75" as standard)
- Balance bar assembly - takes standard remote cable adjust
- Neoprene firewall gasket
- 3 reservoirs with bellows seals
- Banjo and hardline fittings
- 2 Residual Pressure Valves (2PSI and 10PSI as standard for disc/drum cars)
- 6:1 ratio pedals
- Self-textured carbon fibre infused pedal pads
Complete Pedal box weight 3.5kg
Instructions
Please note the pedal box requires some assembly.
Add-ons:
Remote cockpit bias adjuster
Build service
7/8" race clutch slave cylinder
Brake pressure switch
---This is a special price for First Production Pre-Orders Only---
To qualify for this price you must sign-up for our tester program which has specific T&Cs. Get in touch for details.
